EAN kód8595568924353
Vámtarifaszám85363030
Súly0.67 kg/pcs
Szélesség176 mm
Magasság126 mm
Mélység87 mm
Funkciójukat tűz esetén megtartjákP90-R, E90, PS90
Tűzállósági szabványokČSN 73 0895, DIN 4102-12, STN 92 0205

Note for system with maintained functionality in fire:

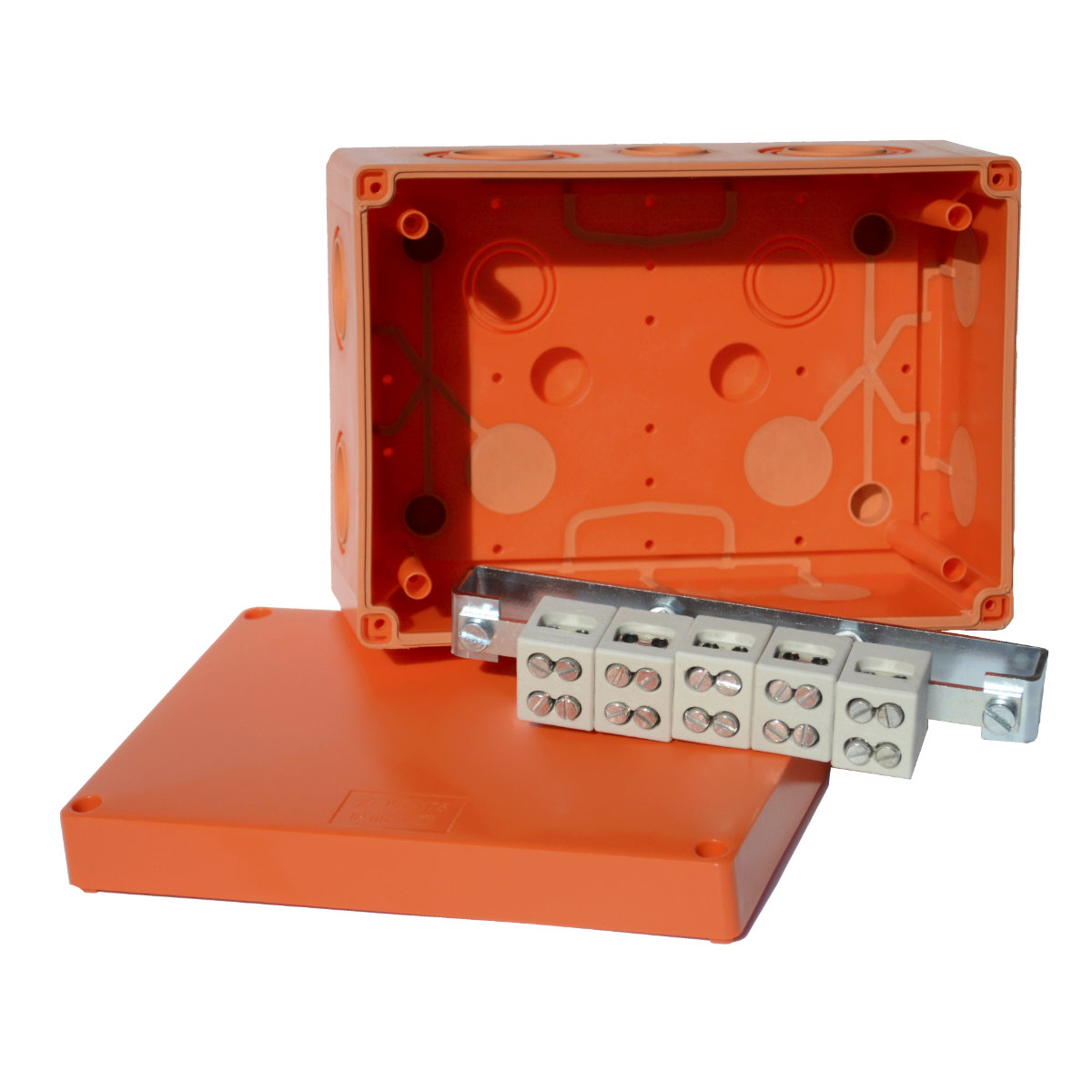

Boxes are fitted with 5 ceramic terminal blocks for installing up to 4 cable wires onto a one potential. It is fastened using anchors for use in concrete (supplied). The boxes are designed for use only for power cables with proven functionality during fire. The fire-resistant wiring boxes are made from halogen-free material and contain soft conduits to make it easier to cables into the box.
You find more information in the catalogue Systems with maintained functionality in fire.
