EAN kód8595568919670
Súly0.25 kg/pcs
Színlight grey RAL 7035
AnyagPP, lid - PA
Halogén-mentes anyagyes
Ólommentes anyagyes
UV Stabilyes
Önkioltó30 sec.
Névleges feszültség<= 400 V
Névleges áramerősség<= 16 A
Hőállóság-25 - 60 °C
Izzó hurok teszt850 °C

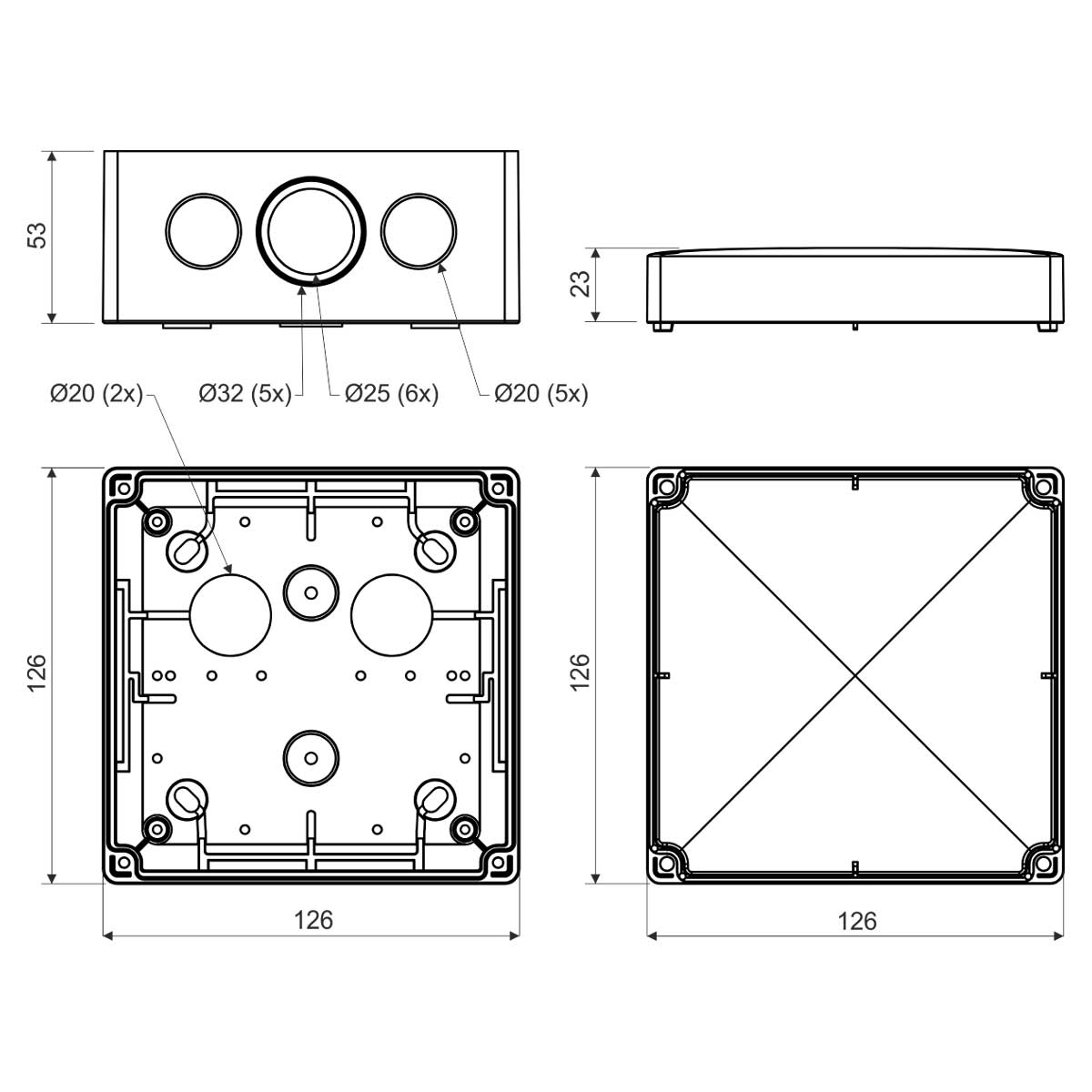

Szélesség126 mm
Magasság126 mm
Mélység51 mm
Tűzveszélyességi osztályA1 - F
Védelmi típusokIP 66
Csomagolás leírás
the plug and lid screws inserted in the box, each box packed in shrink foil and labeled

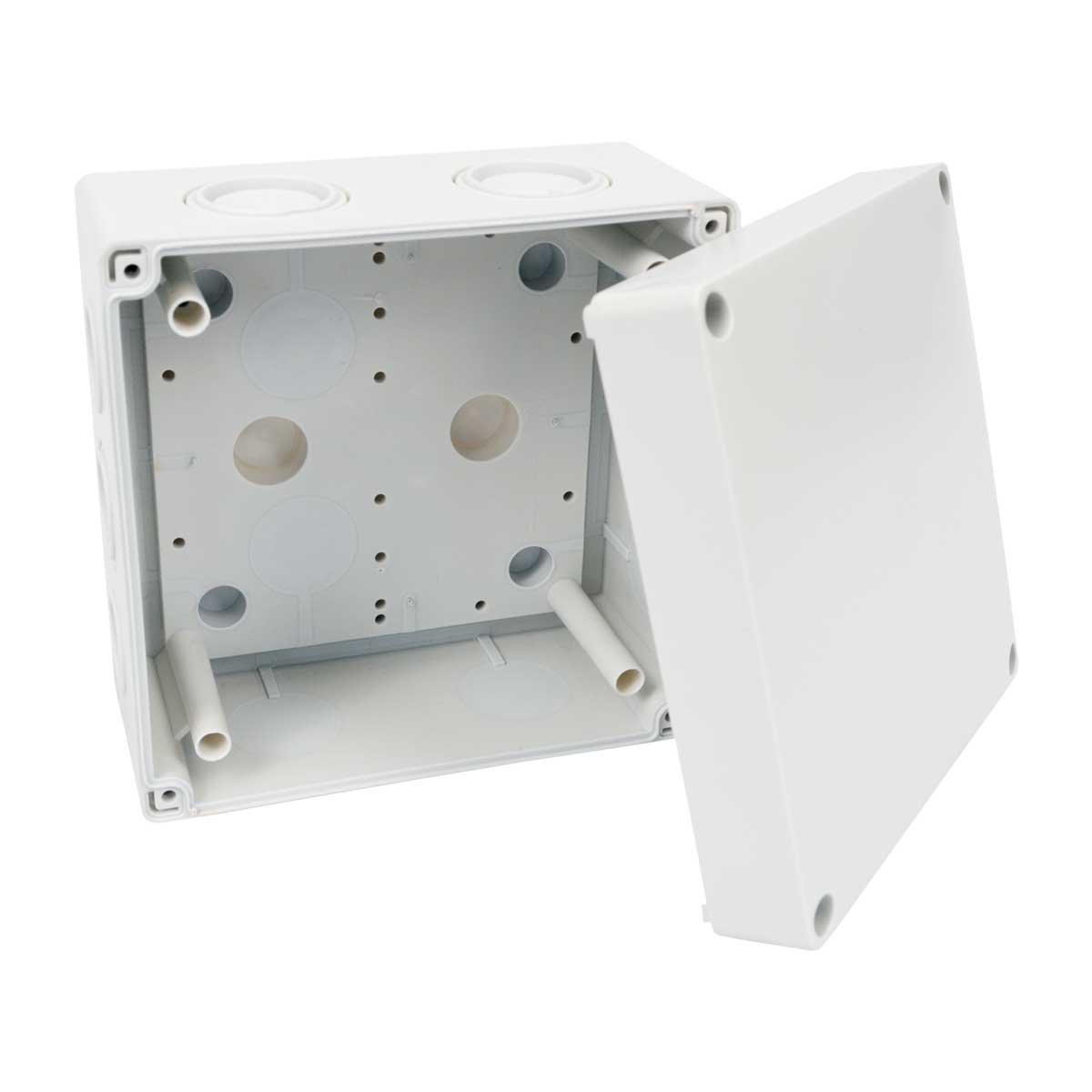

Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 2). Integrated O-ring to install cable glands. Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire. 7x membrane inputs with Ø20 mm, 6x Ø25 mm and 5x break-out inputs with Ø32 mm.
