Szemléltető kép
KSK100_EN
| EAN kód | 8595568930927 |
| Vámtarifaszám | 85363030 |
| Súly | 0.16 kg/pcs |
| Szín | black |
| Anyag | PP |
| Halogén-mentes anyag | yes |
| UV Stabil | yes |
| Önkioltó | 30 sec. |
| Névleges feszültség | <= 400 V |
| Névleges áramerősség | <= 16 A |
| Hőállóság | -25 - 60 °C |
| Izzó hurok teszt | 850 °C |

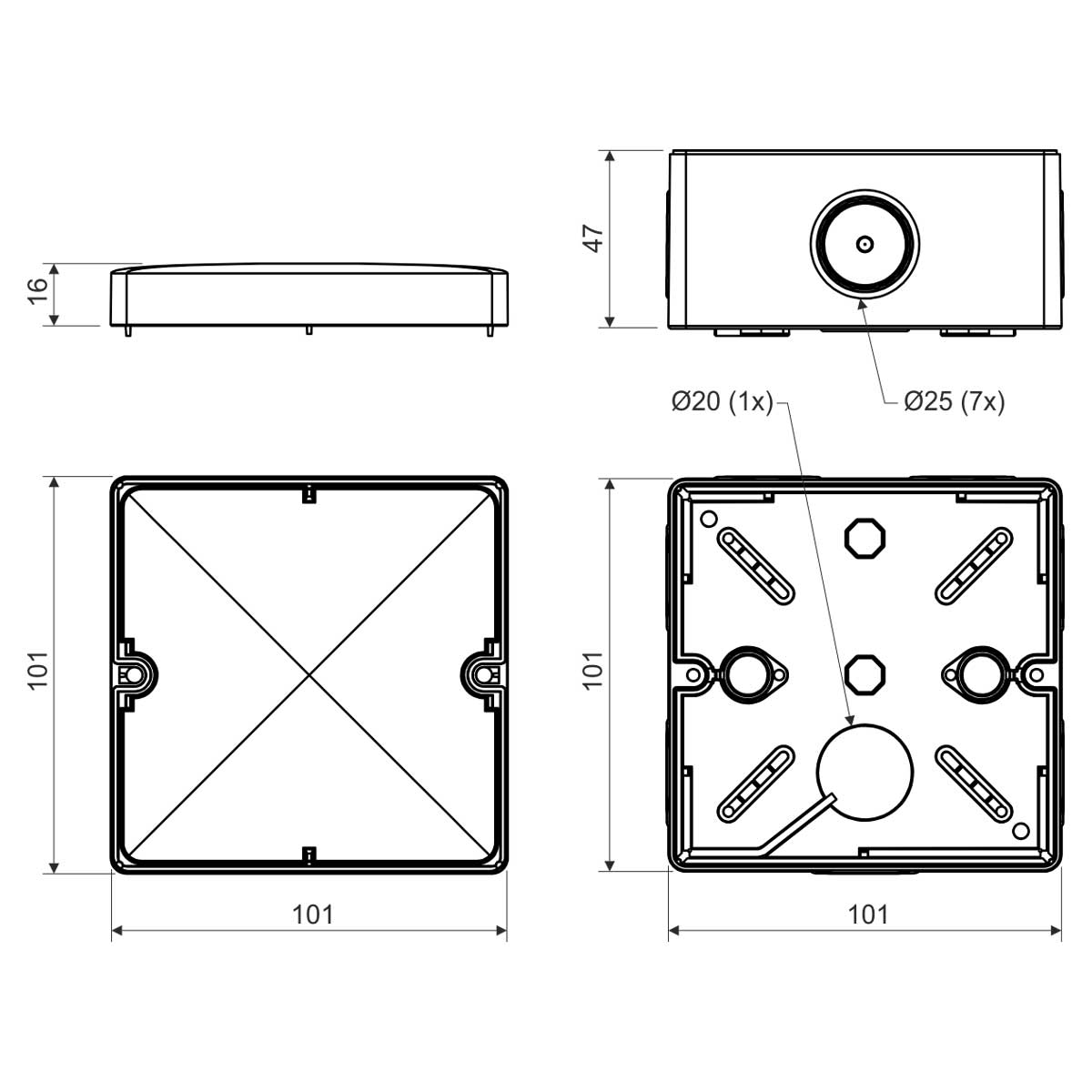

| Szélesség | 101 mm |
| Magasság | 101 mm |
| Mélység | 45 mm |
| Tűzveszélyességi osztály | A1-F |
| Védelmi típusok | IP 66 |
| Csomagolás leírás the plug and lid screws inserted in the box, each box packed in shrink foil and labeled | |

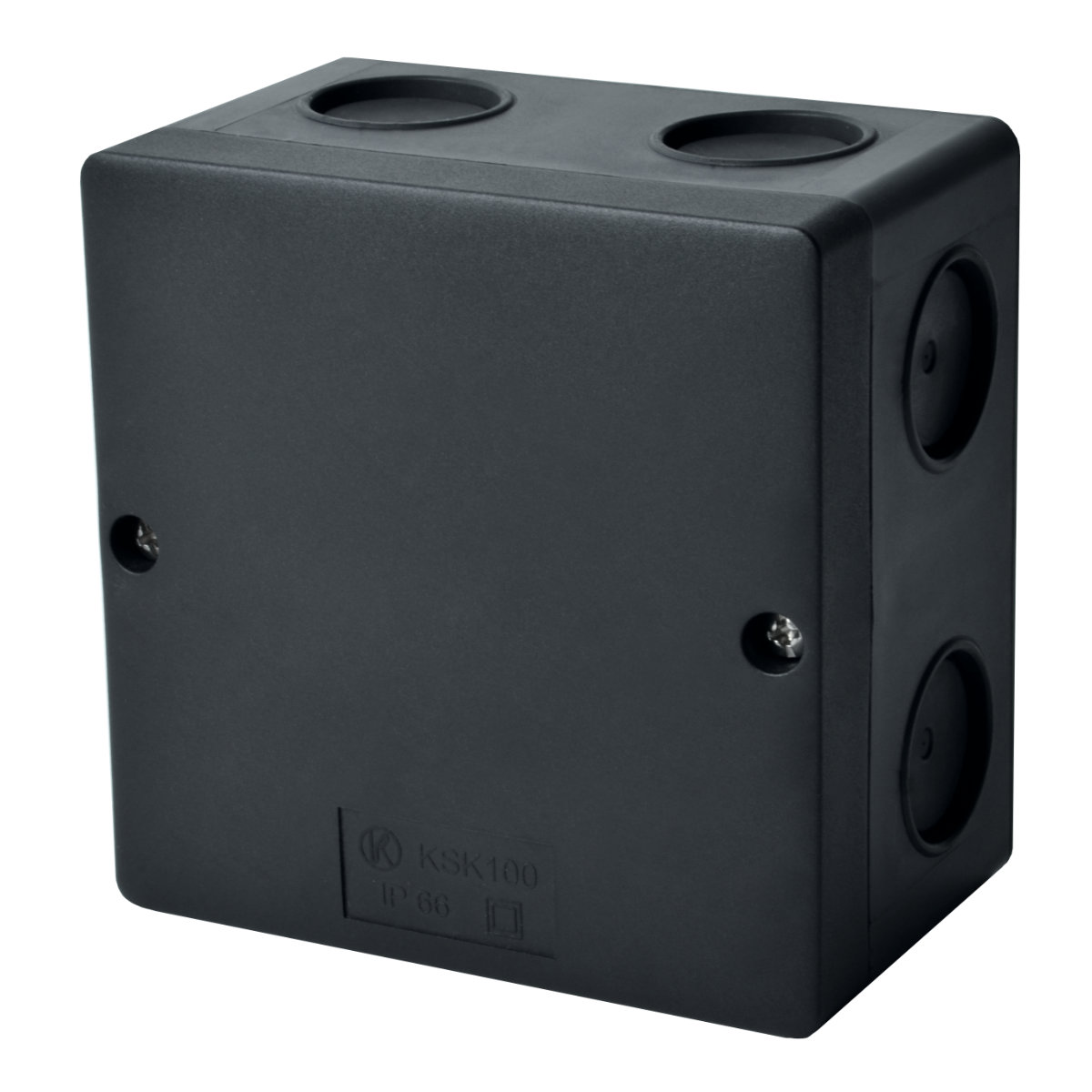

Intended for installation in environments that require IP 66 protection. Integrated knockouts for mounting on base. Intended for direct installation on the surface without having to support with insulating pad. Perfect sealing of cables and pipes. The stainless screws for lid installation and caps for the heads of the mounting screws are included in the package. Option to install special terminal plate (S-KSK 1). Integrated O-ring to install cable glands. Alternatively the box is also available as fire resistant box, see the catalogue Systems maintaining functionality during fire. 7x knockouts with Ø25 mm and 1x Ø20 mm.
