EAN kód8595057657205
Vámtarifaszám39259020
Súly1.54 kg/m
Színwhite
AnyagPVC
Ólommentes anyagyes
Önkioltó30 sec.
Hőállóság-5 - 60 °C
Izzó hurok teszt850 °C
Mechanikai védelemIK07
Ütésállóság1 J

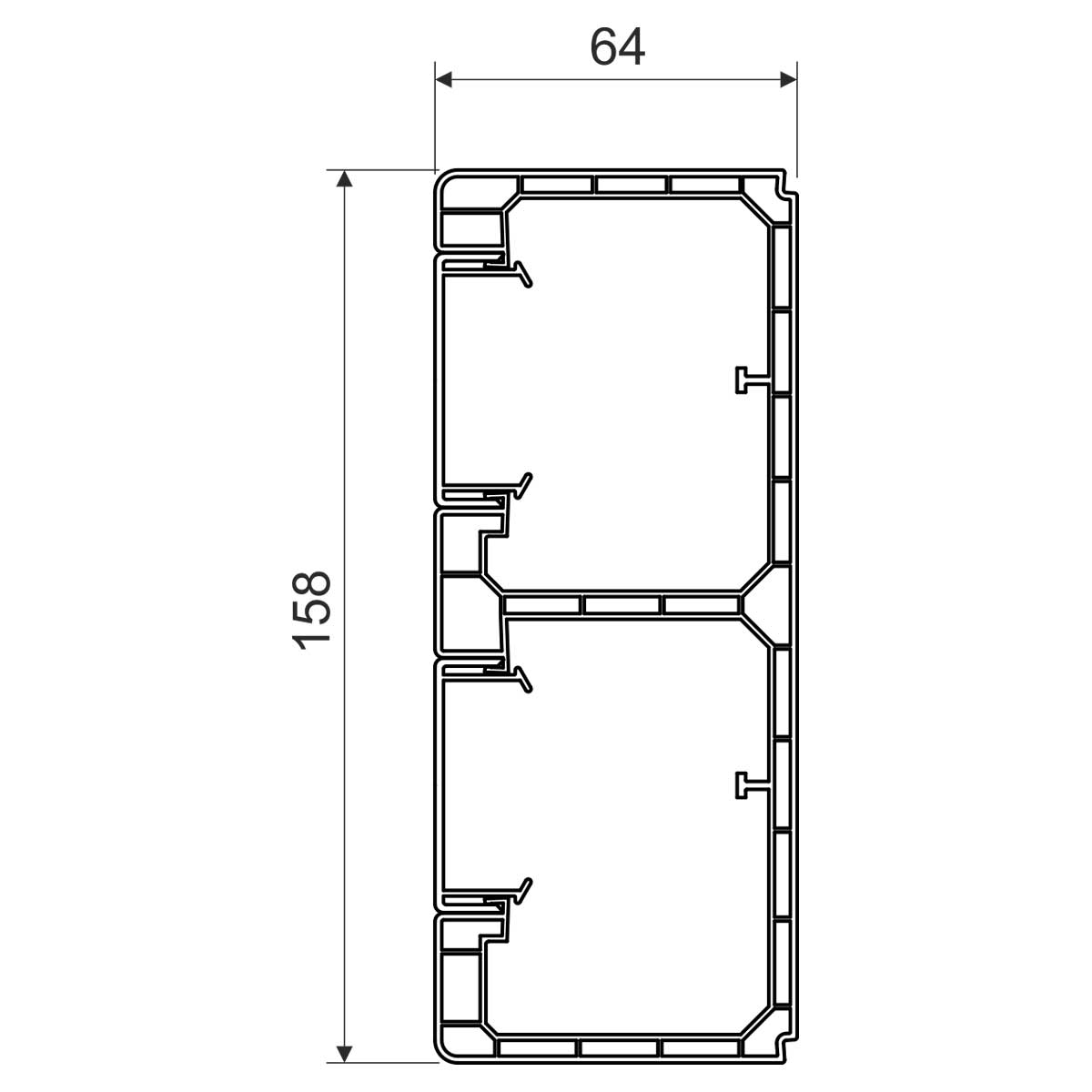

Szélesség158 mm
Magasság64 mm
Hosszúság2 m
Belső felület3800, 3600
Tolerancia
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Hazsnálat
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Gyártói ajánlások
If the SK 40X33 (higher) shielding canal can be installed, it is not possible to use instruments with a larger installation depth, eg with an overvoltage protection device. The producer recommends checking the depth of a particular device before installation.
Tűzveszélyességi osztályA1 - F
Védelmi típusokIP 40
SzabványokČSN EN 50 085-1
Csomagolás leíráspackage - cardboard

Designed for installation of modular devices 45 x 45 or 45 x 22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation of devices from other manufacturers is possible with maximal instrument depth 52mm. The mechanical division or separation of circuits can be made by using partition walls PEKE 60 or PKS 70/60. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use instrument washers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument.
