EAN kód8595057650572
Vámtarifaszám39259020
Súly1.36 kg/m
Színwhite
AnyagPVC
Ólommentes anyagyes
Önkioltó30 sec.
Hőállóság-5 - 60 °C
Izzó hurok teszt850 °C
Mechanikai védelemIK07
Ütésállóság1 J

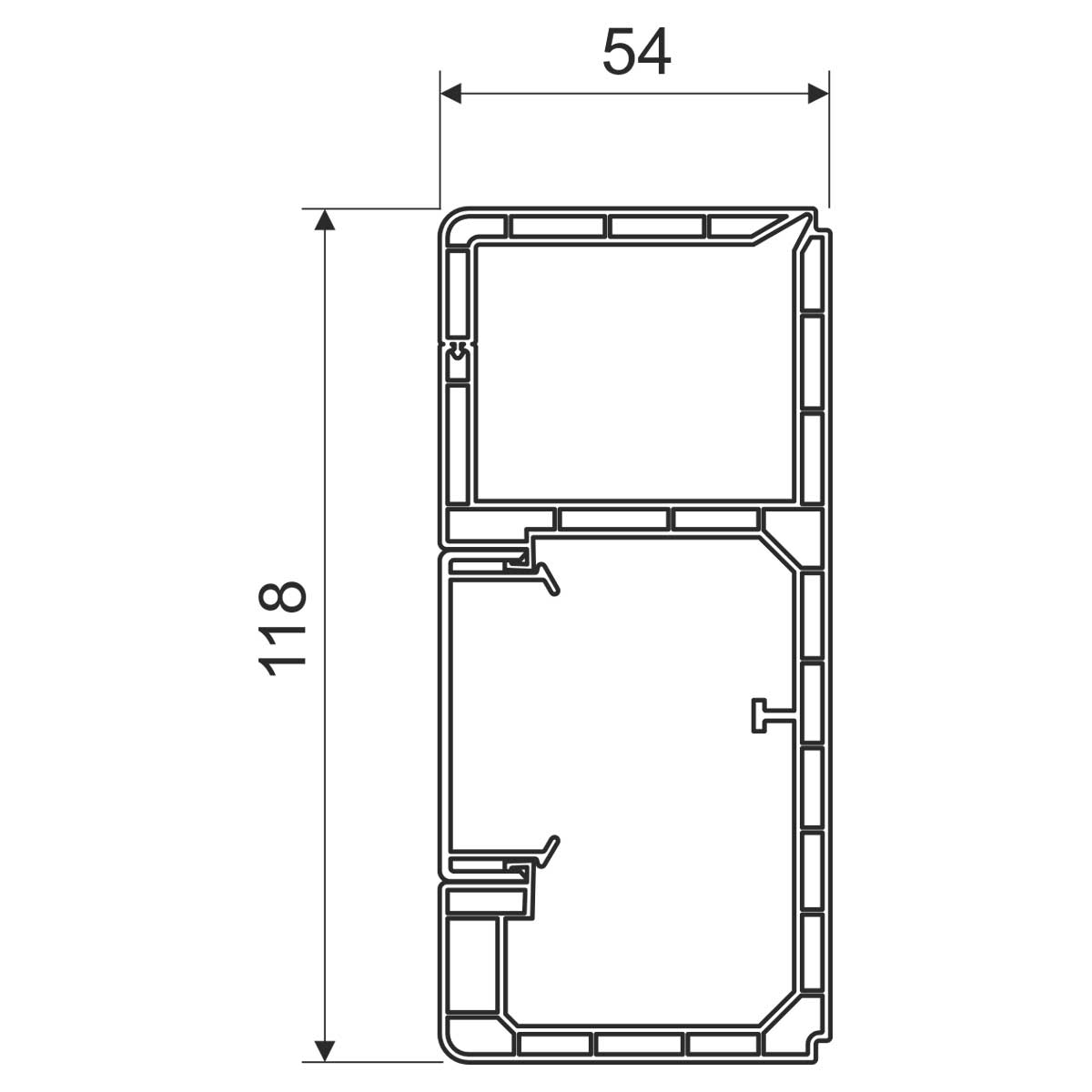

Szélesség118 mm
Magasság54 mm
Hosszúság2 m
Belső felület1550, 2250
Tolerancia
The trunkings are available in lengths with a tolerance of ± 0.5% at 20 ° C.
Hazsnálat
they are resistant to aggressive and chemical environments. They do not resist UV radiation, they are not suitable for outdoor use.
Gyártói ajánlások
If the SK 40X33 (higher) shielding canal can be installed, it is not possible to use instruments with a larger installation depth, eg with an overvoltage protection device. The producer recommends checking the depth of a particular device before installation.
Tűzveszélyességi osztályA1 - F
Védelmi típusokIP 40
SzabványokČSN EN 50 085-1
Csomagolás leíráspackage - cardboard

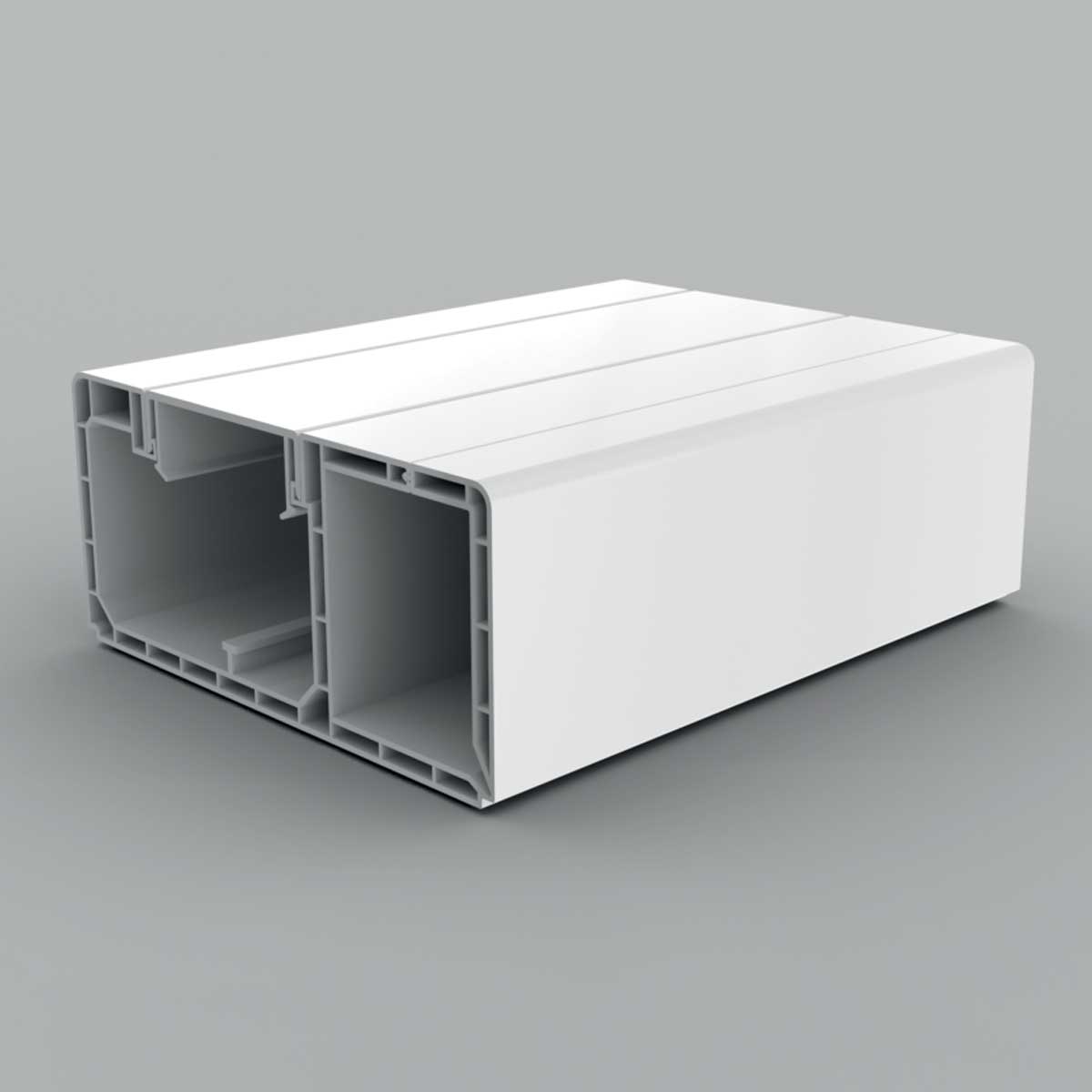

Designed for installation of modular devices 45 x 45 or 45 x 22,5 mm. KOPOS recommends installing QUADRO instruments, tailor-made for KOPOS products. The installation devices from other manufacturers is possible e.g. ABB, PEHA, Legrand, OBO Bettermann, Schneider Electric Altira with maximal instrument depth 42mm. The tilting section allows inserting the shielding canal SK 40X20 or SK 40X33, which ensures perfect shielding of data circuits. If shielding and therefore inserting shielding canals is required, parapet trunking must be installed with tilting section up. Maximum number of modular instruments placed next to each other is 3 pcs. When installing multiple instruments next to each, it is necessary to put about 5 cm wide piece of lid after 3 pieces to fasten them. There is no need to use any covers for the final installation of modular devices. The lid is cut to the desired length and inserted next to the instrument.
