EAN kód8595568942302
Vámtarifaszám85369010
Súly2,8707 kg/db.
Izzó hurok teszt650 °C
Mechanikai védelemIK07
Szélesség223 mm
Magasság250 mm
Mélység75 mm
Funkciójukat tűz esetén megtartjákP90-R, E90, PS90
Védelmi típusokIP40
Tűzállósági szabványokČSN 73 0895, DIN 4102-12, STN 92 0205

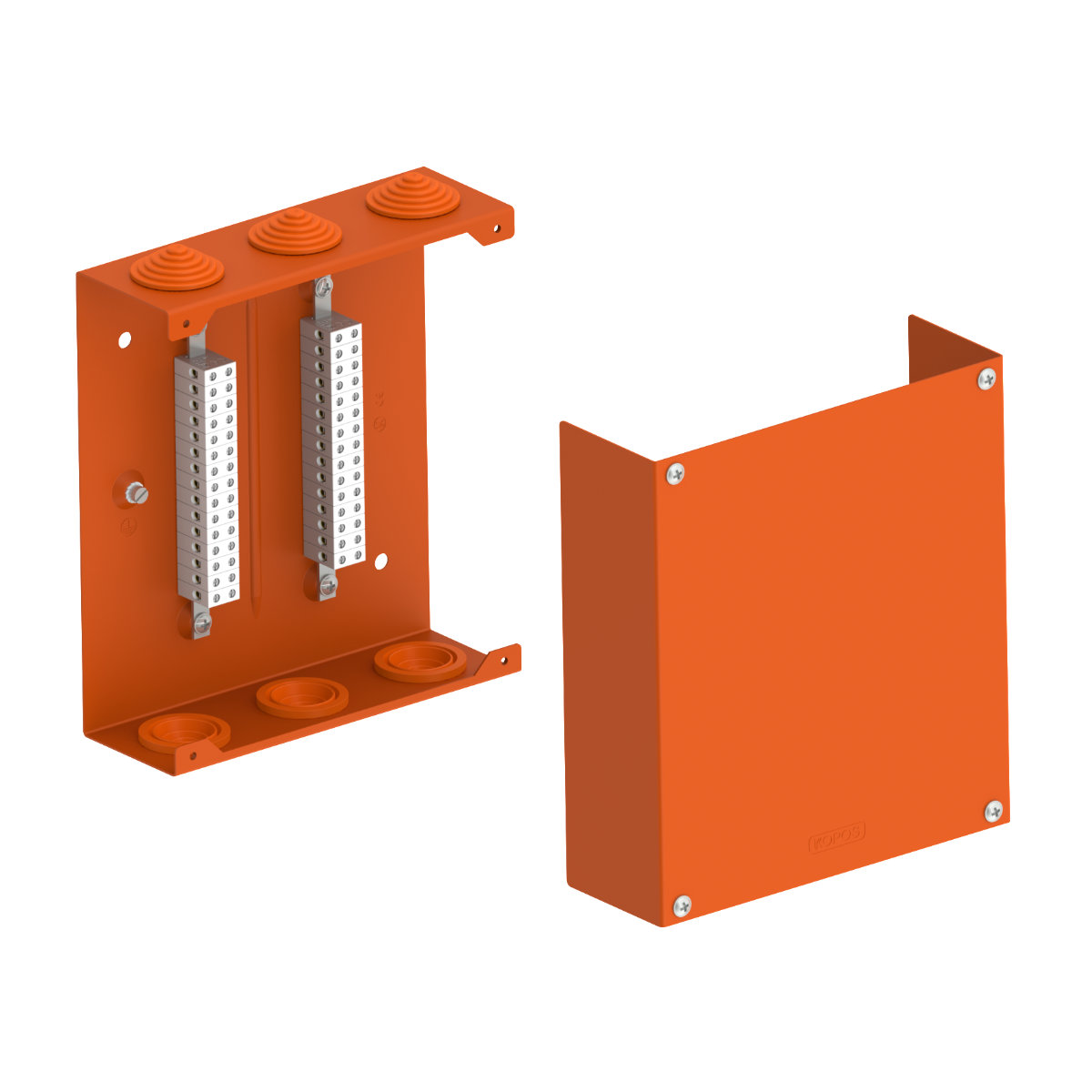

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with data cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
