EAN kód | 8595568942272 |
Vámtarifaszám | 85369010 |
Súly | 1,6501 kg/db. |
Izzó hurok teszt | 650 °C |
Mechanikai védelem | IK07 |
Szélesség | 190 mm |
Magasság | 203 mm |
Mélység | 75 mm |
Funkciójukat tűz esetén megtartják | P90-R, E90, PS90 |
Védelmi típusok | IP40 |
Tűzállósági szabványok | ČSN 73 0895, DIN 4102-12, STN 92 0205 |

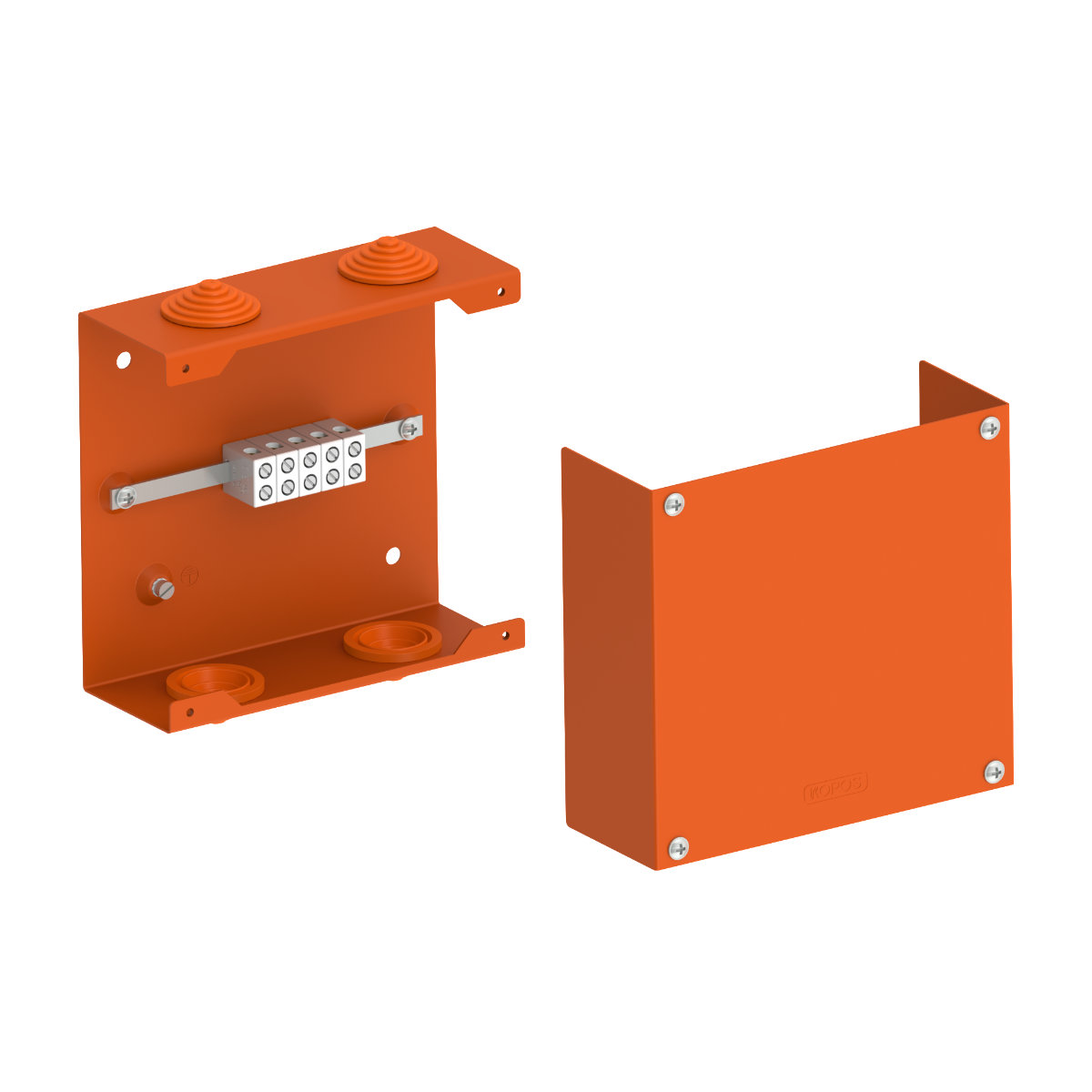

These are metal boxes with ceramic terminals for conductors with functional integrity. Use in special applications such as protected and unprotected escape routes. The boxes are designed for use with power cables. Fire-resistant boxes are made from galvanized sheet metal, which is then coated with a polyester UV-resistant paint. The cable entry passages are made from soft plastic material, allowing easy cable insertion into the box. The boxes are mounted by using the included screws for concrete (SB 3.5x45, included in the package).
