EAN kód8595568904218
Vámtarifaszám73269098
Súly1.05 kg/pcs
FelületképzésPre-Galvanized
Hőállóság-50 - 150 °C
SzabványokČSN EN 61537
Fém lemez vastagsága2 mm
Csatlakozáshoz szükséges csavarok száma8

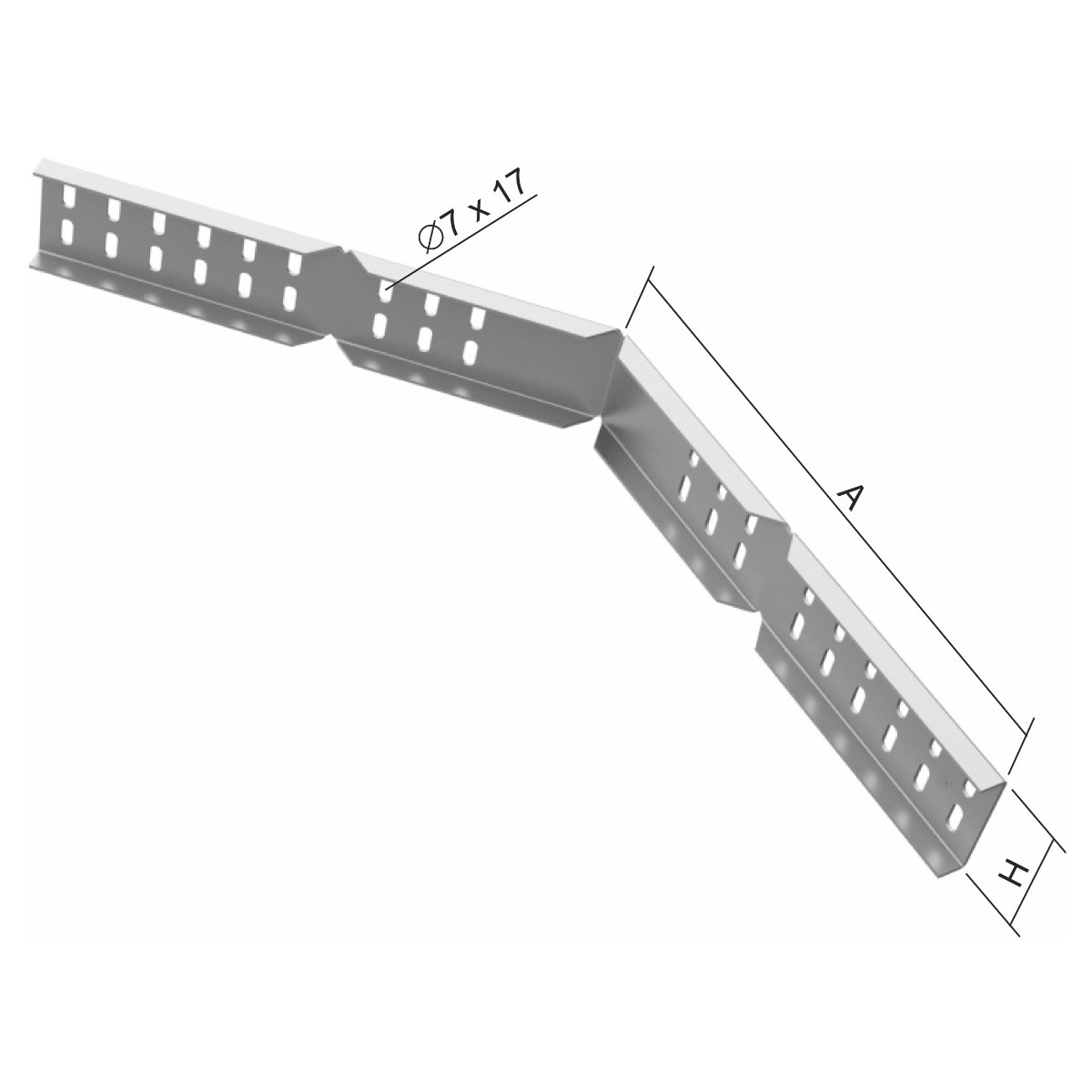

A méret315 mm
H méret89 mm

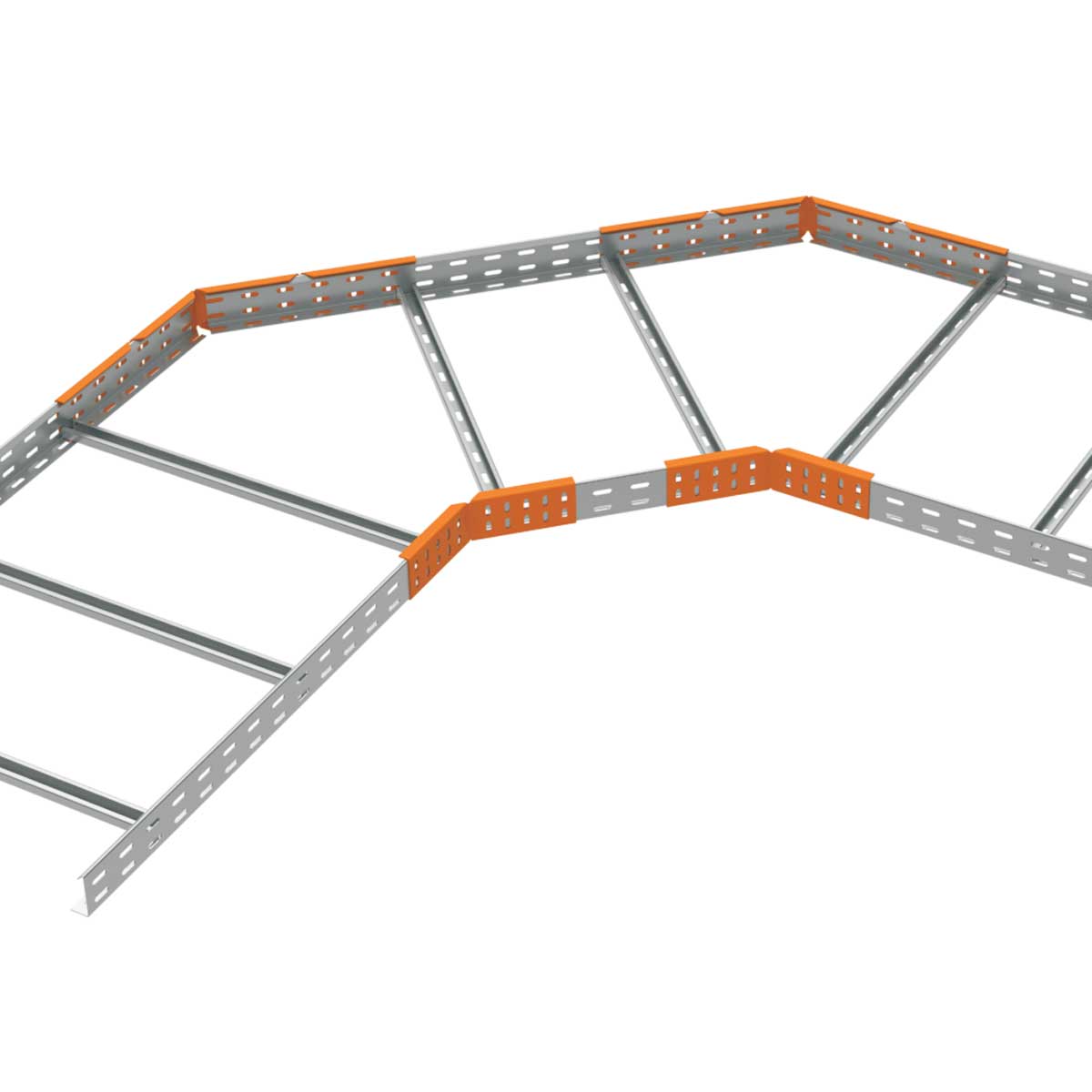

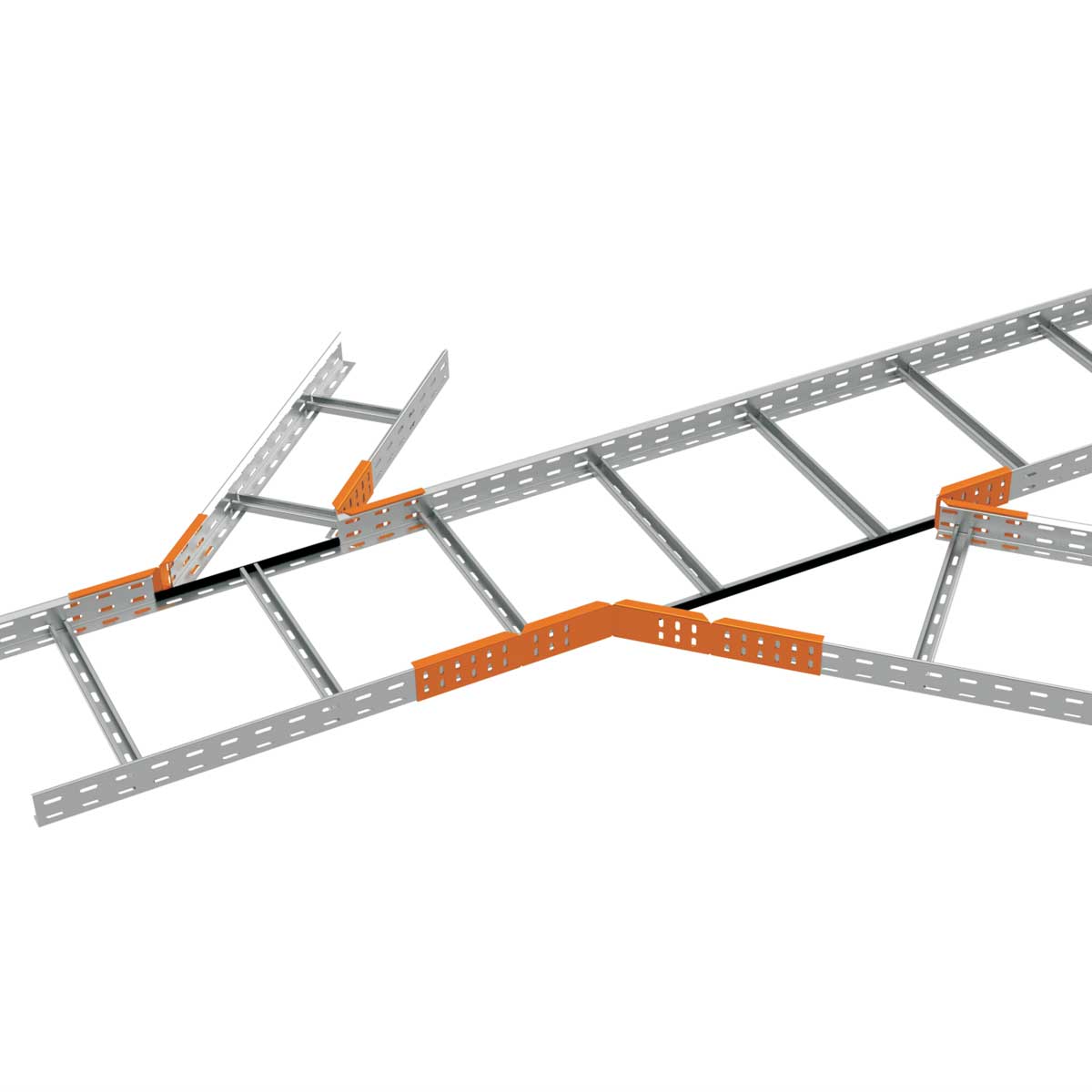

Used to create branches in cable ladder routes or as a substitute for cable ladder fittings or to create a change in a route at different angles and different bending radiuses. Connectors are a cost-effective and versatile way of creating branches in routes in a horizontal direction. Cut the side wall of the cable ladder to bend off c. 15 mm above the bottom – in the bottom perforation axis. It is necessary to use NCH. The fastening of the joint is performed with the bolts NSM 6X10.
