Szemléltető kép

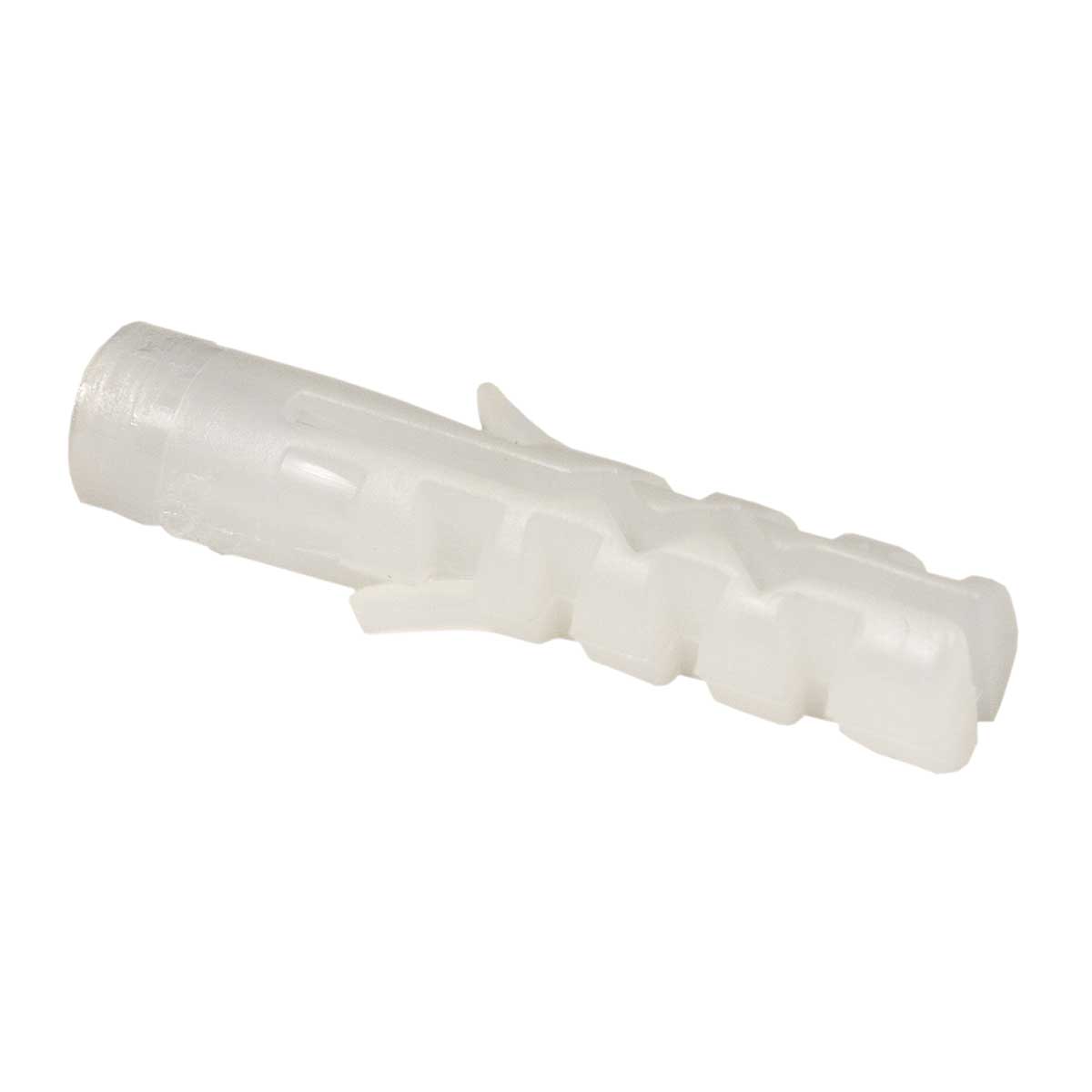

HM 10 XX - hmoždinka
To access download of 3D models login or register.
EAN kód8595057605176
Vámtarifaszám39259080
AnyagPA
Halogén-mentes anyagyes

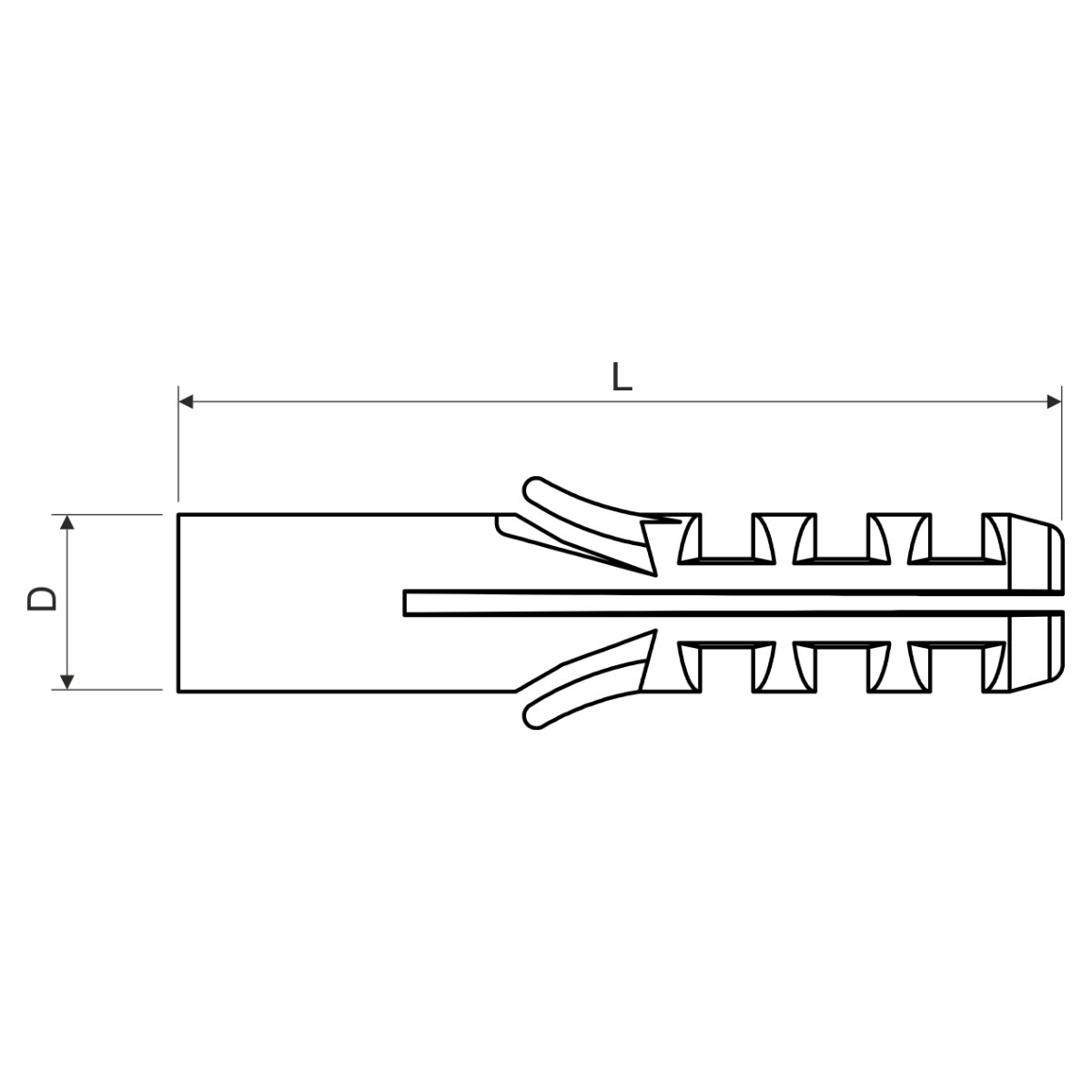

Hosszúság50 mm
Külső átmérő10 mm
Csavar átmérő5 - 6 mm
Gyártói ajánlások
dowels should be installed immediately after unpacking from a sealed bag. This will avoid unnecessary lowering of the PA moisture level, which would result in a reduction in the quality of the dowel
Fúrás mélysége55 mm

Designed for light anchoring – fixing of non-structural building components and building equipment to brickwork, concrete and other building materials. For connection, use a screw fitted to full length of the wall plug; it is also necessary to allow for the thickness of material to be fastened. For more information, see installation instructions.
