EAN kód | 8595568940827 |
Vámtarifaszám | 83024190 |
Súly | 1,0999 kg/pcs |
Felületképzés | Magnelis® |
Maximális teherbírás | 130 kg |
A méret | 320 mm |
B méret | 74 mm |
Kábeltálca szélességéhez | 300 mm |
Kábeltálca magasságához | 35 - 110 mm |

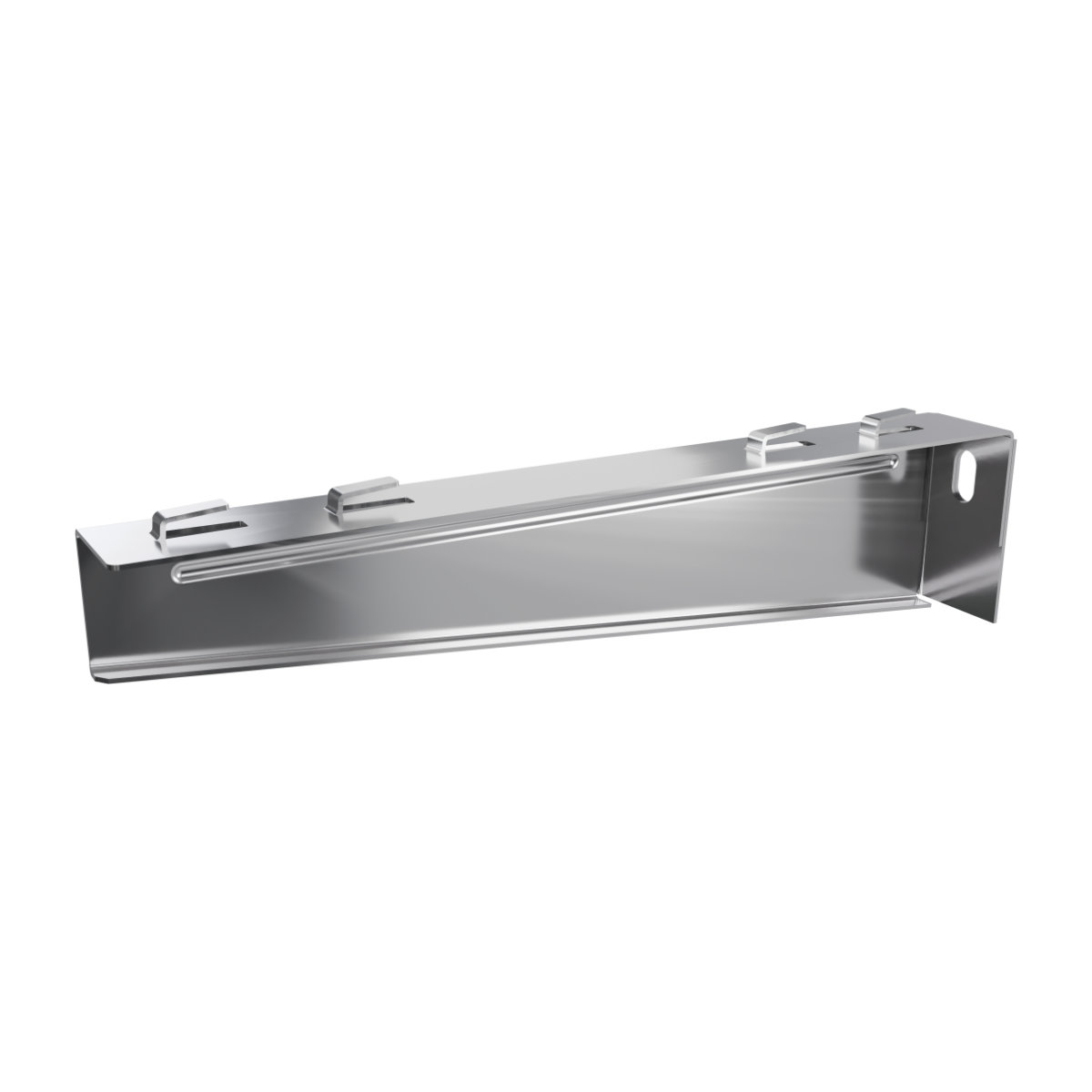

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 (2 pcs) are used. By bending the fixing protrusions, we ensure a quick and reliable fixation of the wire tray trough to the support. The bracket DSDZ 150_ZM is not suitable for the wire tray DZI 110X150. For the DZI 110X150 wire tray, it is possible to use the bracket DS 150_ZM and fix the tray to the bracket using the DZSU fastening screw. To attach the DZI 60X60 tray to the wall, it is recommended to use the DZZ hinge.
