EAN kód | 8595568940650 |
Vámtarifaszám | 83024190 |
Súly | 0,3298 kg/pcs |
Felületképzés | Magnelis® |
Maximális teherbírás | 130 kg |
A méret | 270 mm |
B méret | 64 mm |
Kábeltálca szélességéhez | 250 mm |
Kábeltálca magasságához | 35 - 110 mm |

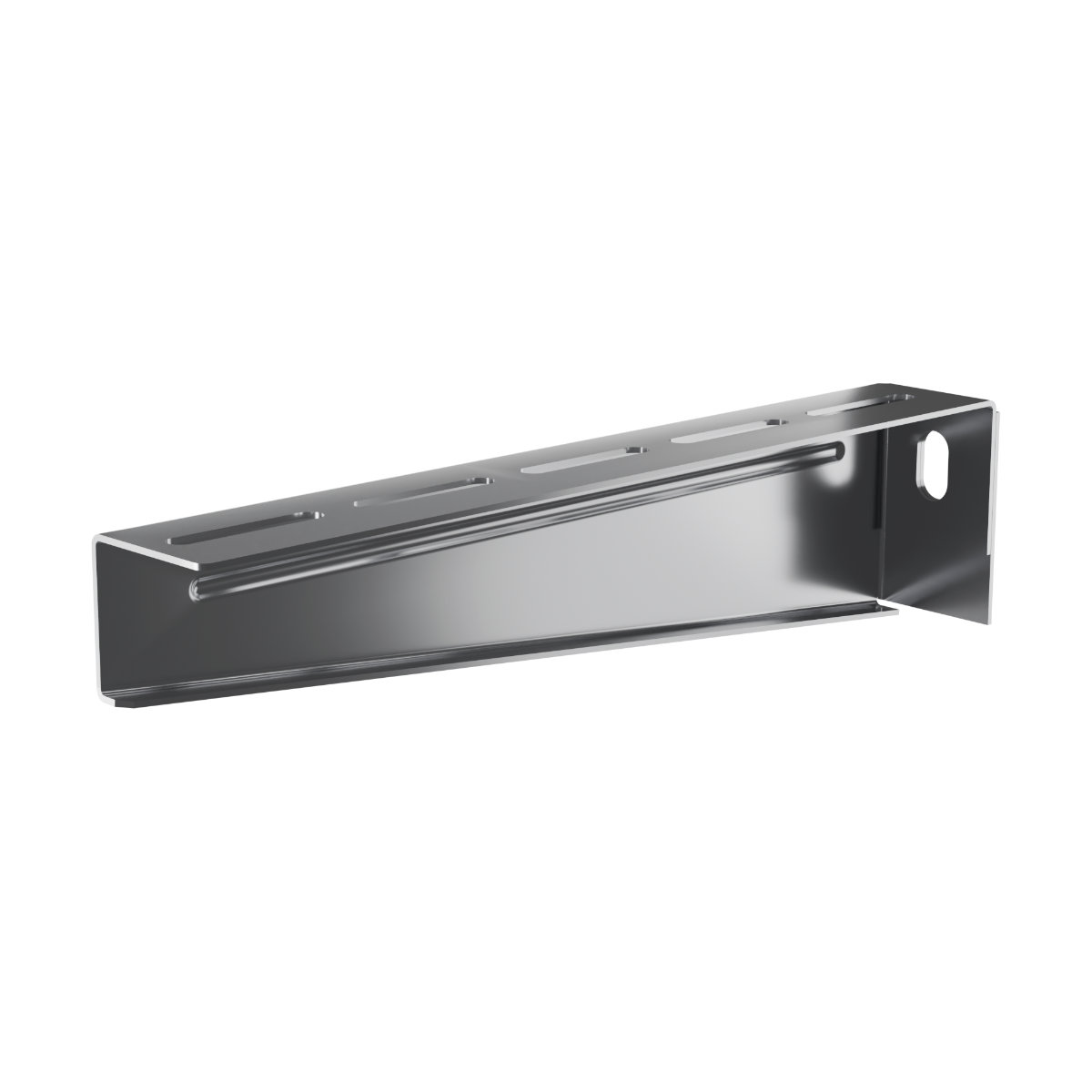

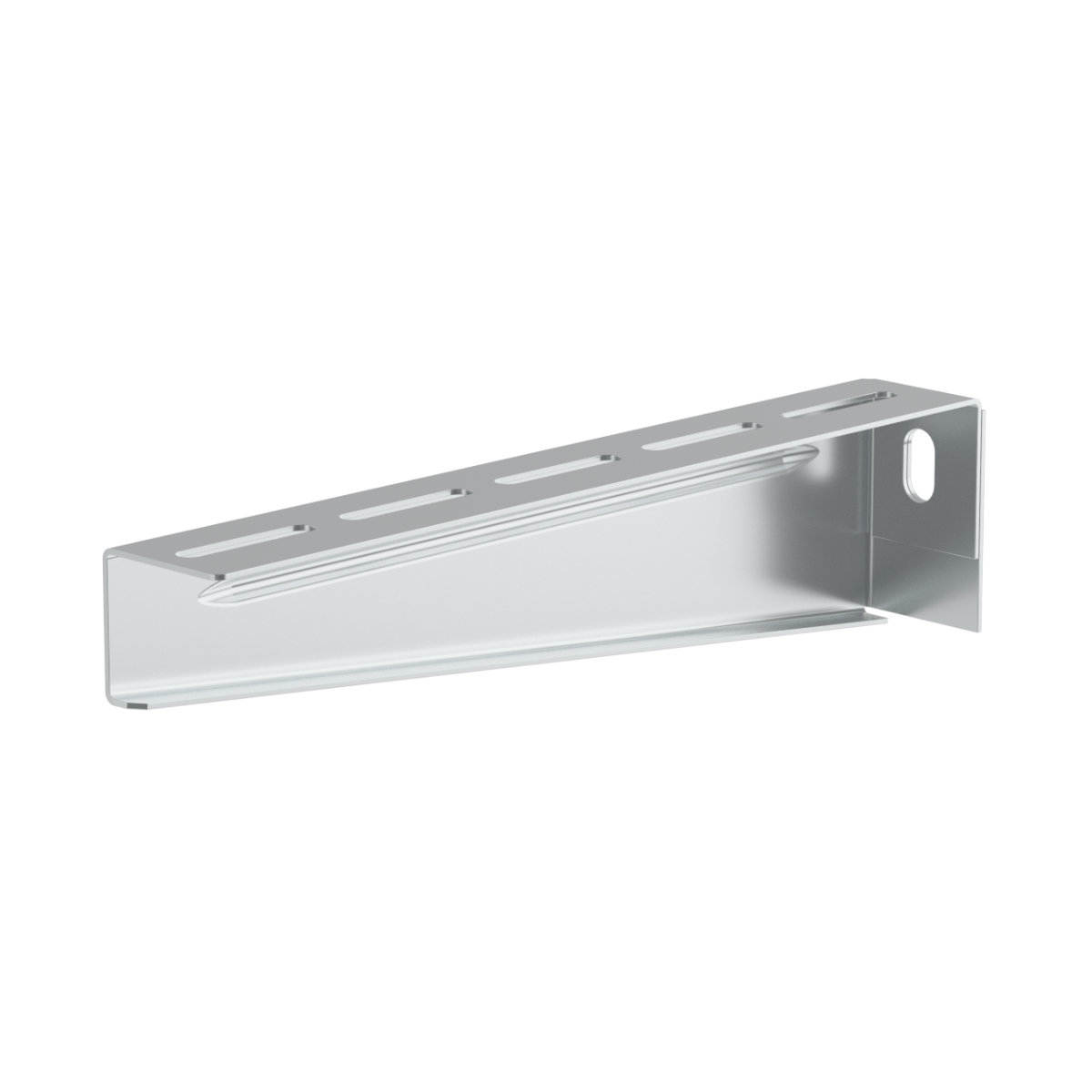

The bracket is intended for mounting to a wall or a ceiling profile. Fixing to the wall is done using a Ø 8 mm anchor. For mounting on the ceiling profile SPL and SPS, sliding nuts PM 41 M 10 together with screws S 10X20 are used. For fastening to the ceiling profile SPLN, SPSN or SPU, a screw S 10X20, a nut M 10 and a washer PD 10 are used. For fastening the cable tray to the bracket DS, screws NSM 6X10 are used.
