EAN kód | 8595568934116 |
Vámtarifaszám | 73089059 |
Súly | 3.10 kg/m |
Felületképzés | Rozsdamentes acél AISI 304 |
Hőállóság | -50 - 150 °C |
Szélesség | 200 mm |
Magasság | 110 mm |
Hosszúság | 2100 mm |
Szabványok | ČSN EN 61537 |
Fém lemez vastagsága | 1,2 mm |
Részek távolsága | 300 mm |

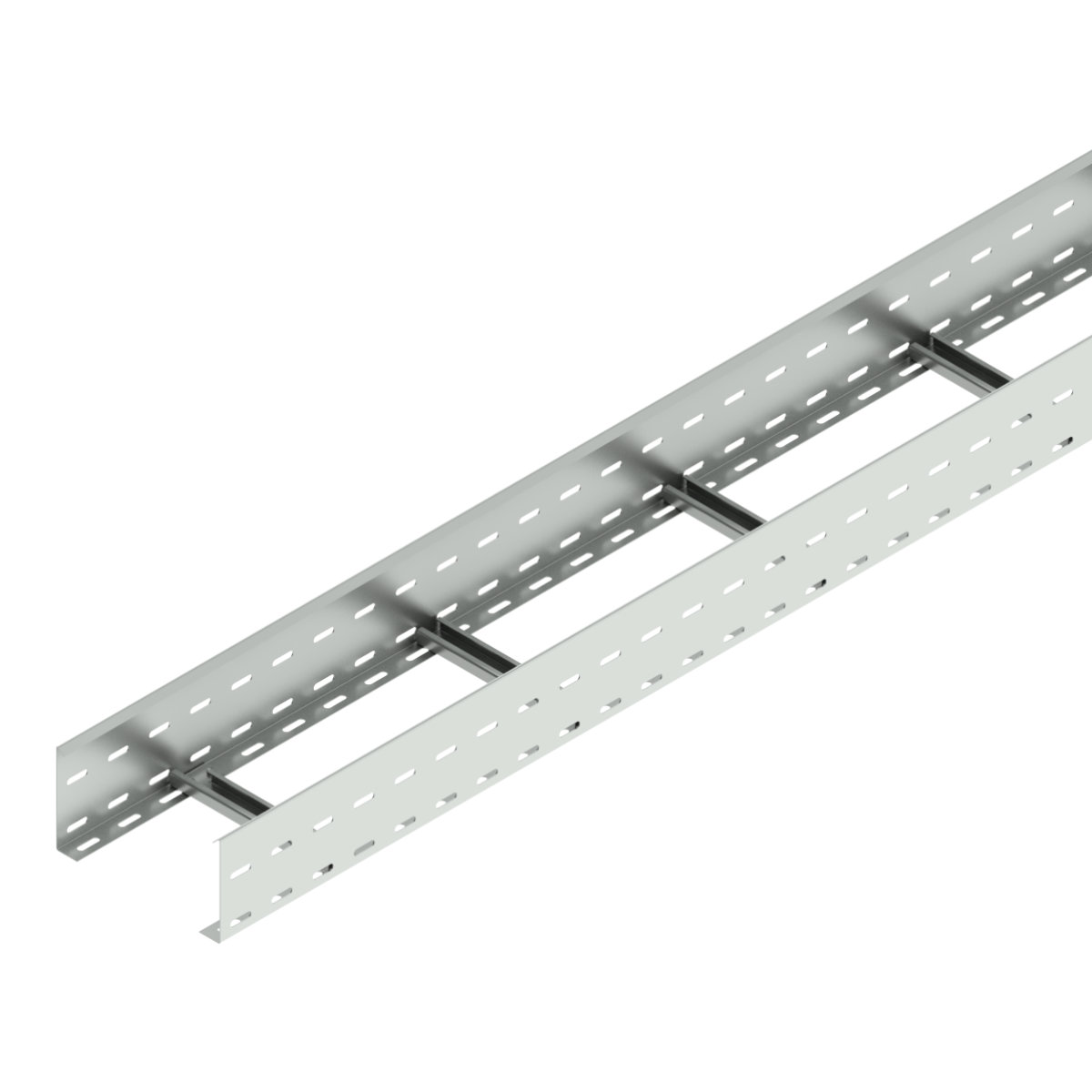

The joining of the ladders is performed by using the couplings INOXS 110 and min. 8 pcs of bolts NIXSM 6X10. The side walls are L-profiles with return flange. The perforated C-profile rungs are placed in the side walls by extrusion with a spacing of 300 mm, with open side of the profile facing up.
