EAN kód8595568931948
Vámtarifaszám85363030
Súly0.13 kg/pcs
AnyagPVC
Ólommentes anyagyes
Önkioltó30 sec.
Névleges feszültség<= 400 V
Névleges áramerősség<= 16 A
Hőállóság-5 - 60 °C
Izzó hurok teszt850 °C

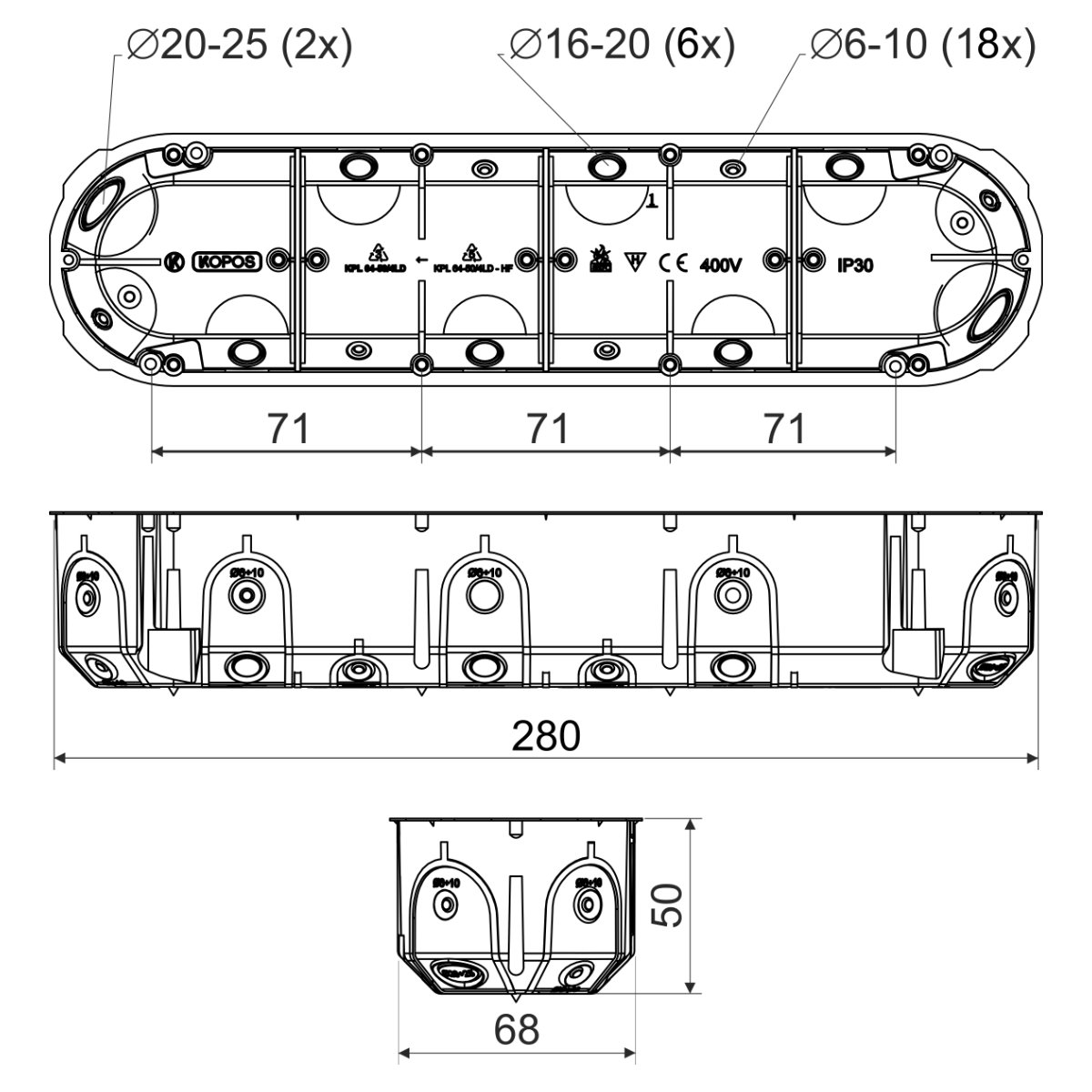

Szélesség280 mm
Magasság68 mm
Mélység50 mm
Furat átmérője68 mm
Gyártói ajánlások
For all range of products in hollow walls, we recommend using the milling sets supplied by us.
Tűzveszélyességi osztályA1 - F
Távolság két doboz csatlakozánál71
SzabványokČSN EN 60 670-1
Csomagolás leírás
boxes fitted with screws for installation in plasterboard and instrument screws, boxes placed freely in the cardboard

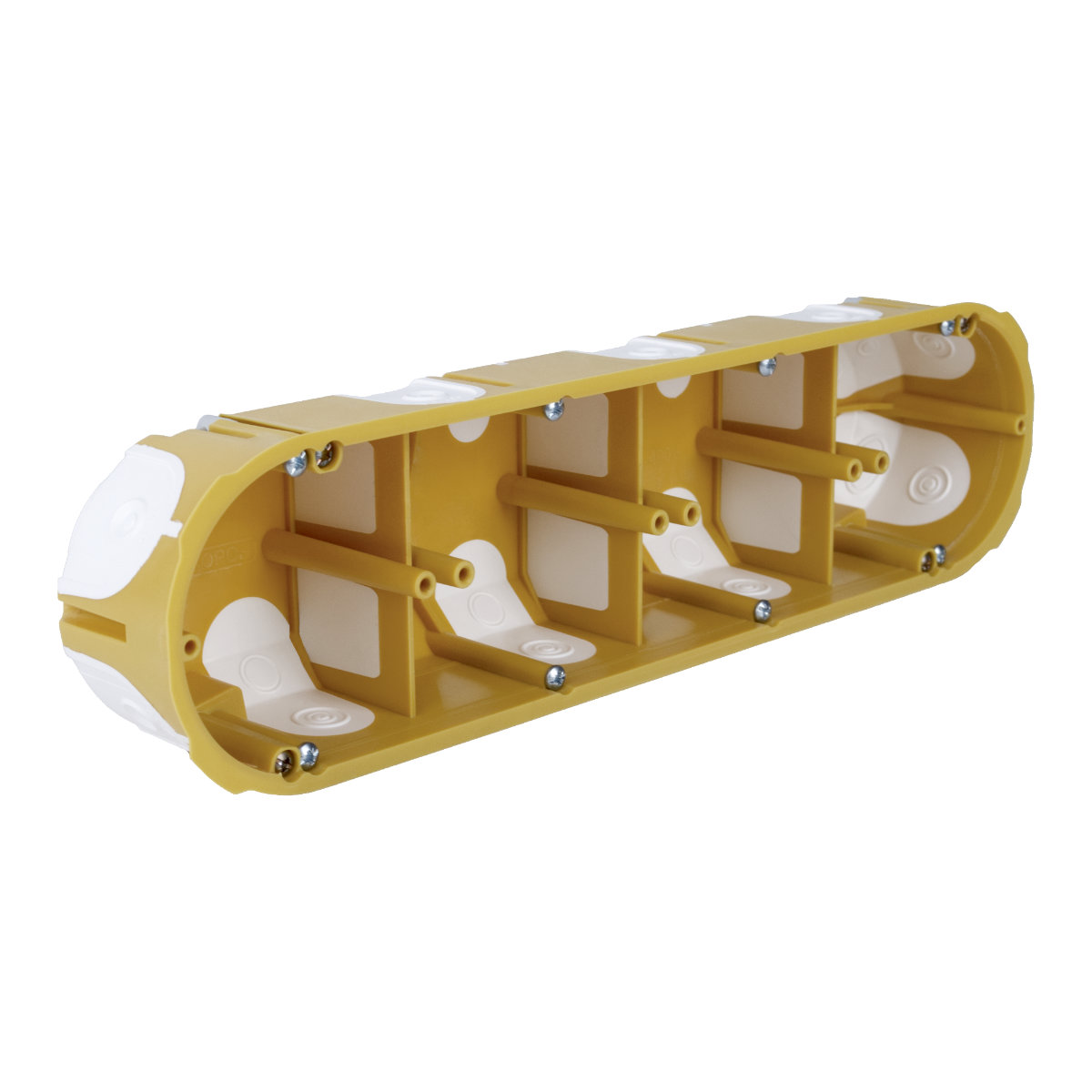

For modern installations in combined frames. Highly rigid design makes the device installation simpler. Inlet openings made of flexible material. Air proofed even with inserted cable or pipe. Prevents airflow through the installation. Suitable for low energy and passive houses. Four tips on the external side indicate the drilling points. Mounting bolts feature double-threaded design for quick installation. Installation box in the hole is made by tightening mounting screws. Cable installation is done by removing (breaking) pre-pressed membrane inlet and followed by inserting the cable possibly pipe. Protected by European industrial design. The IP30 protection a box fitted with an instrument with protection a higher or equal IP30 protection. When mounting, it is not necessary to countersink the plasterboard edge.
